Model V12

VAN MOUNTED
TELESCOPIC
PLATFORM

MORE PAYLOAD FOR INTERNAL
WORKSHOP, PARTS AND TOOLS

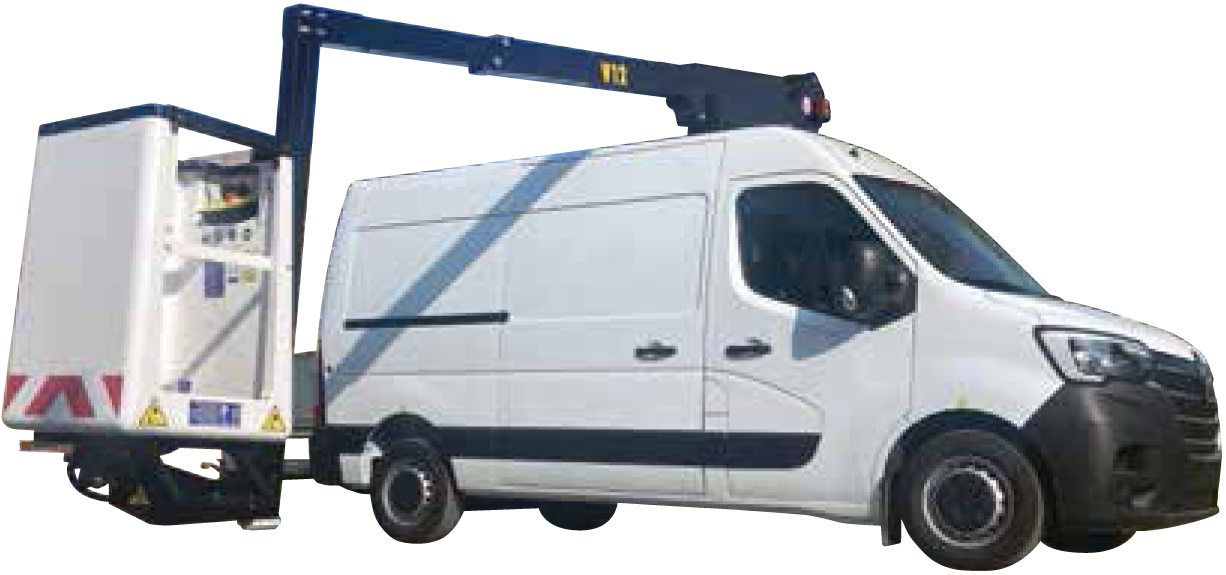

Our new EURO LIFT V12 truck platform boasts a number of features that will make your work easier, faster and more productive, as it absolutely does not require stabilizers thanks to the "FAST & EASY" system.

Are you a rental or dealer of aerial platforms? Then contact us to evaluate purchase or rental opportunities.

Ask for more information >>

The platform offers a working height of 12 m at a 7 m lateral reach with a load capacity of 120 kg on the basket. It is also compact and extremely handy, so it is easy to move around in tight spaces.

  • Lenght: 6,632 m
  • Height: 3,201 m
  • Wheelbase:3,682 m

Installed the most modern safety systems for aerial platforms: automatic stabilization system, overload protection and emergency lowering systems.

Equipped with parking aid system with self-centring function.



Altezza di lavoro 12 m
Working height 12 m
Portata sul cestello di 120 Kg
Load capacity 120kg
Rotazione 420°
Rotation of the basket 420°
Connessione Wireless
Wireless connection
Oscillazione torretta all'interno degli specchietti
Turret tailswing within the mirrors
PTT veicolo 3550 kg
3.500 kg.truck gvw
Comandi a joystick
LMC

Sbraccio laterale di 7 m
Side reach 7 m
Fixed
1 kW Optional
1 kW Optional
Senza necessità stabilizzatori
Without stabilizers
Inclinazioni di 3/5°
Inclinations of 3/5°
Elevata capacità di carico
500 kg. payload
Unità di comando a terra
Ground control unit

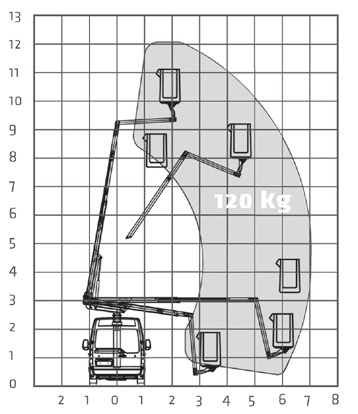

WORKING DIAGRAM

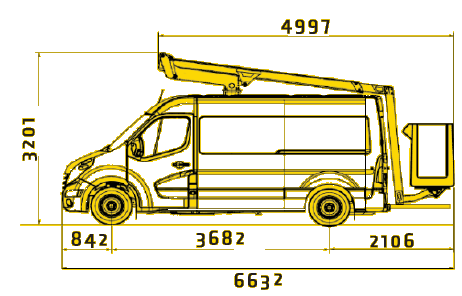

If, for example, you choose the RENAULT Master 3.5 t as your vehicle, then you can drive it with a driving licence B, wheelbase 3682 mm, the platform will have the following external dimensions and a weight of about 3000 kg, leaving sufficient payload inside the VAN to be equipped with a small workshop.
In addition, this specific vehicle has been granted CE type-approval as standard of the platform, so that in Europe it will not be necessary to carry out further testing.
Esempio utilizzo
Modello V12 compatto

Le dimensioni compatte, la facilità d'uso e la disponibilità di uno spazio di carico di 500 Kg per allestire la tua officina mobile, ne fanno la soluzione giusta per lavorare in spazi ridotti come i centri storici delle città.

Siamo a tua disposizione per qualsiasi ulteriore informazione o per una dimostrazione.

Contattaci >>
Modello V12 compatto

The compact dimensions, the ease of use and the availability of a 500 kg load space to set up your mobile workshop, make it the right solution to work in small spaces such as the historic city centers.

We are at your disposal for any further information or for a demonstration.

Contact us>>

Optional available on demand

  • Workshop interior LED ceiling lights in the load area
  • Approved tow hook of 750 kg
  • Configurable shelves for the van
  • Floor panel for the van
  • Side lining for the van
  • Removable Led spotlight
  • Display in the upper control panel
  • Sliding work table for the bucket
  • 2 rotating orange LED lights
  • Voltage converter
  • 220 volts socket in the basket
  • ECO BATTERIES version
